1 x Temperature IN

CAN / CANopen / J1939
Sensor Acquisition of Temperature Signals

µCAN.1.ti-SENSOR

µCAN-SENSOR board
Home 9 Portfolio 9 I/O Modules 9 OEM 9 µCAN.1.ti-SENSOR

The sensor module µCAN.1.ti-SENSOR can be joined with any sensor and is designed to acquire an analogue temperature signal. It can be integrated directly in the sensor head (18 mm in diameter). Sensor tolerances can be adjusted with the module already built in. The sensor signal is linearized and monitored directly in the hardware.

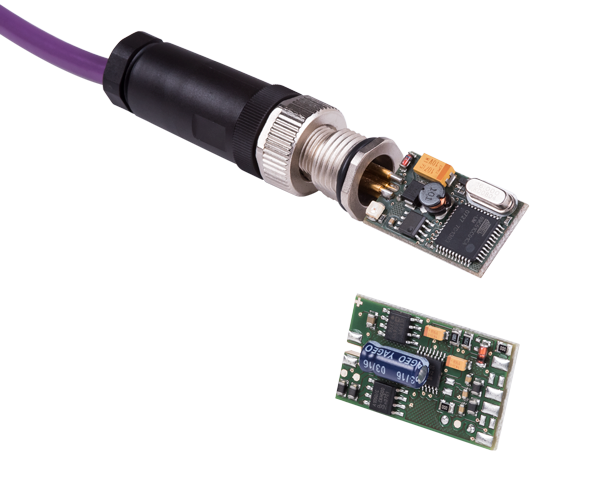

Sensorplatine front and back

Precise measurement of temperatures: µCAN.1.ti-SENSOR

Features

  • Temperature Thermo type J, K, L
  • Temperature Pt100, Pt1000 (2-wire)
  • Accuracy ± 0.5 K (Thermo)
  • Accuracy ± 0.2 K (Pt100)
  • Resolution up to 16-bit (0.1 K)
  • Sampling rate up to 1 kHz
  • Signal type freely configurable
  • Sampling rate adjustable
  • Operating temperatures -40 °C … +85 °C
  • Power supply voltage 9 V DC … 36 V DC
  • Fieldbus CAN classic / CAN FD
  • Protocols CANopen / CANopen FD / J1939

2-channel sensor connection

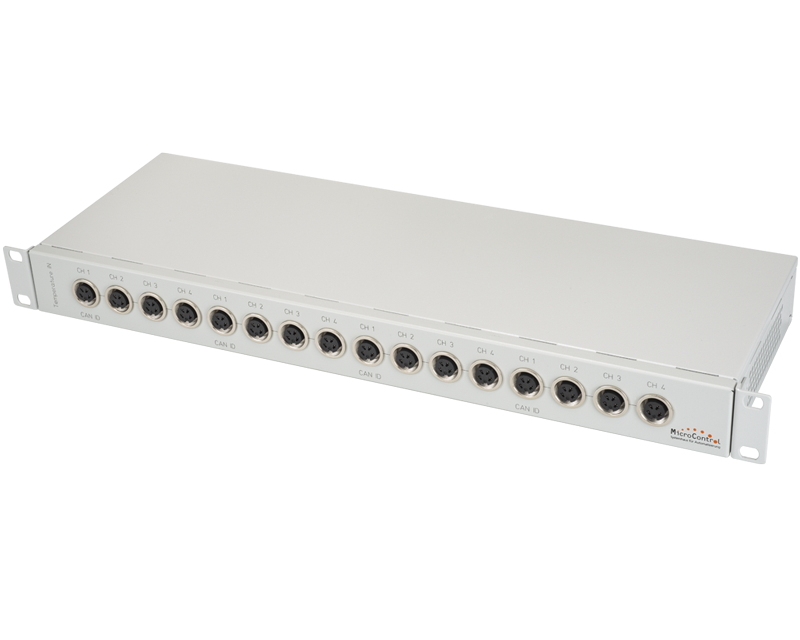

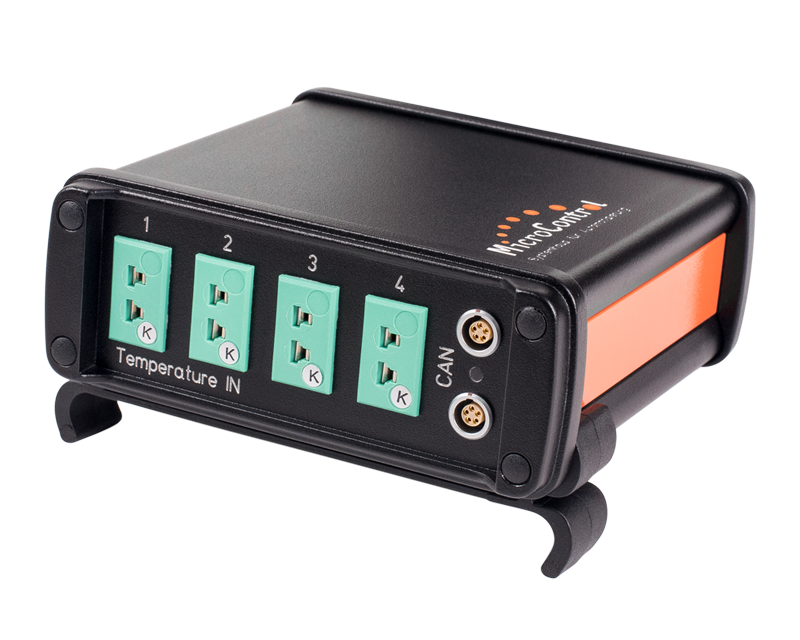

This device is also available as 2-channel sensor connection in different variants. Please contact us for more information and individual solutions.

Further designs

Ordering information

Item no.
Description
13.30.009
µCAN.1.ti-Sensor / Thermo Type J

1-channel sensor acquisition module with CANopen. Signal type thermocouple type J. Equipped with solder pads for connection of plug-in connectors

13.30.011
µCAN.1.ti-Sensor / Thermo Type J / M12 connector

1-channel sensor acquisition module with CANopen. Signal type thermocouple J. M12x1 plugin circular connector included

13.31.003
µCAN.1.ti-Sensor / Thermo type K

1-channel sensor acquisition module with CANopen. Signal type thermocouple K. Equipped with solder pads for customer specific plug-in connectors

13.31.004
µCAN.1.ti-Sensor / Thermo type K / M12 connector

1-channel sensor acquisition module with CANopen. Signal type thermocouple type K. M12x1 plug-in circular connector included

13.32.000
µCAN.1.ti-Sensor / Thermo type L

1-channel sensor acquisition module with CANopen, signal type thermocouple L. Equipped with solder pads for customer specific plug-in connectors

13.32.001
µCAN.1.ti-Sensor / Thermo type L / M12 connector

1-channel sensor acquisition module with CANopen, signal type thermocouple L. M12x1 plug-in circular connector included

13.40.013
µCAN.1.ti-SENSOR / Pt100

1-channel sensor acquisition module with CANopen, signal type Pt100. Equipped with solder pads for custom plug-in connectors

13.40.011
µCAN.1.ti-SENSOR / Pt100 / M12 connector

1-channel sensor acquisition module with CANopen, signal type Pt100. M12x1 plug-in circular connector included

13.41.004
µCAN.1.ti-Sensor / Pt1000

1-channel sensor acquisition module with CANopento be integrated into sensors, signal type Pt1000. Equipped with solder pads for custom plug-in connectors

13.41.005
µCAN.1.ti-Sensor / Pt1000 / M12 connector

1-channel sensor acquisition module with CANopen to be intefrated into sensors, signal type Pt1000. M12x1 plug-in circular connector included

13.30.050
µCAN.1.ti-Sensor / Thermo Type J

1-channel sensor acquisition module with CANopen. Signal type thermocouple type J. Connection by through-hole-technology (THT) in a 2.54 mm grid. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

13.31.050
µCAN.1.ti-Sensor / Thermo type K

1-channel sensor acquisition module with CANopen. Signal type thermocouple K. Connection by through-hole-technology (THT) in a 2.54 mm grid. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

13.32.050
µCAN.1.ti-Sensor / Thermo type L

1-channel sensor acquisition module with CANopen, signal type thermocouple L. Connection by through-hole-technology (THT) in a 2.54 mm grid. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

13.40.050
µCAN.1.ti-SENSOR / Pt100

1-channel sensor acquisition module with CANopen, signal type Pt100. Connection by through-hole-technology (THT) in a 2.54 mm grid. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

13.41.050
µCAN.1.ti-Sensor / Pt1000

1-channel sensor acquisition module with CANopento be integrated into sensors, signal type Pt1000. Connection by through-hole-technology (THT) in a 2.54 mm grid. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

Downloads

Datasheet µCAN.1.ti-SENSOR
1-channel analogue input temperature
PDF [716 KB]

Handout New Sensor Connection
PDF [88 KB]

Manual µCAN.SENSOR
1-channel analogue input temperature
PDF [745 KB]
