4 x Counter IN

4-channel digital

Counter input

µCAN.4.ci-BOX

MicroControl I/O module BOX 4-channel digital counter input / frequency measurement
Home 9 Portfolio 9 I/O Modules 9 BOX 9 µCAN.4.ci-BOX

The µCAN.4.ci-BOX is equipped with 4 fast counters of up to 100 kHz. The CAN module acquires and processes the binary pulses and transmits them to a higher-level system

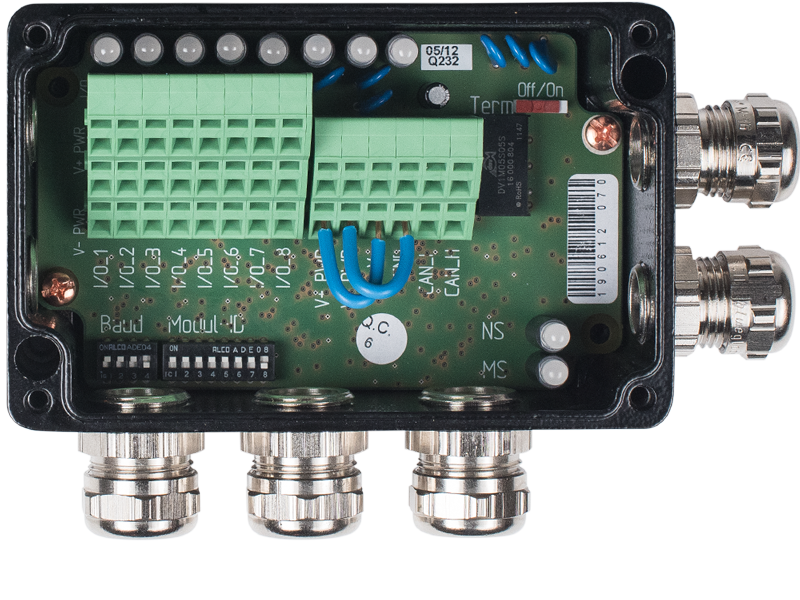

MicroControl I/O module BOX 4-channel digital counter input / frequency measurement (open casing)

µCAN.4.ci-BOX: pulse counting and frequecy measurement

Features

  • Counter input / frequency measurement
  • A/B signal
  • Max. input frequency 500 kHz
  • Galvanically isolated fieldbus
  • High precision frequency measurement
  • Signal type freely configurable
  • Up or down counter
  • Protected against mechanical stress
  • Fieldbus CAN
  • Protocol CANopen / Raw CAN

Further designs

Ordering information

Item no.
12.88.010
90.01.114
Description
µCAN.4.ci-BOX

4-channel counter module with CANopen, designed for metric cable connectors. Signal wiring via screw terminals.

Metric cable connection kit for 4-channel fieldmodules

Downloads

Datasheet µCAN.4.ci-BOX
4-channel digital I/O counter input
PDF [191 KB]

Manual µCAN.4.ci-BOX
4-channel digital I/O counter input
PDF [3 MB]

CANopen EDS file
mcan4ci_box_v2r10.eds
EDS [33 KB]
