16 x Analogue IN

CANopen 19″-Slide-in Module
for Current Measurement

µLAB.16.ai-19″

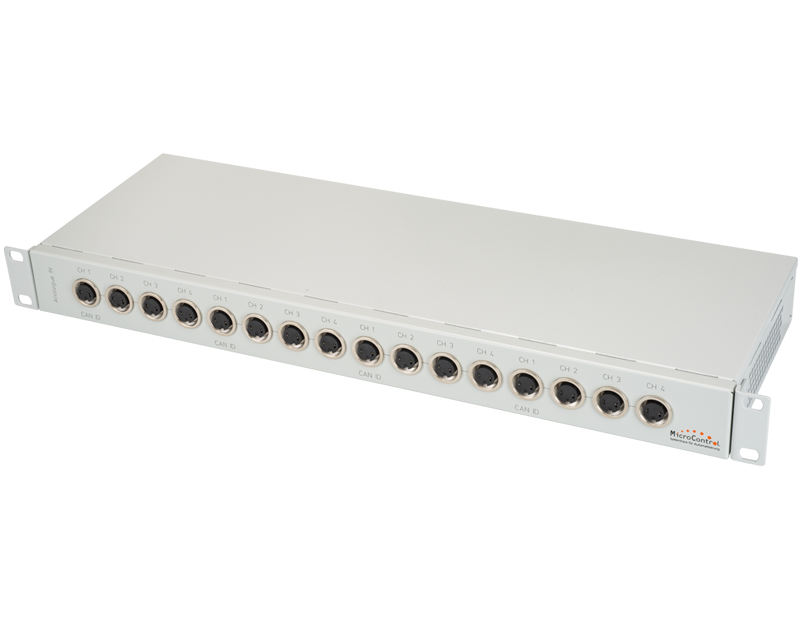

MicroControl I/O module 19"-slide-in 16-channel analogue input current
Home 9 Portfolio 9 I/O Modules 9 19″-System 9 µLAB.16.ai-19″ / current

Equipped with CAN or CANopen interfaces and a 19″ slide-in casing, the MicroControl µLAB is particulary suitable for measuring electric, thermal and mechanic signals in engine or components testing facilities The signal wires are connected to the module by plug-in connectors in the front plate.

MicroControl I/O module 19"-slide-in 16-channel analogue input open casing

µLAB.16.ai-19″: Data acquisition in a 19″ slide-in module

Features

  • Current 0(4)…20 mA
  • Accuracy 0.01% (FS)
  • Resolution 16-bit (1 µA)
  • Sampling rate 5ms / 200 Hz
  • Galvanically isolated fieldbus
  • Operating temperatures -40…+85 °C
  • Supply voltage 9…36 V DC
  • Connection via circular plug-in connectors
  • Fieldbus CAN
  • Protocol CANopen / Raw CAN

Related Products

Ordering Information

Item no.
41.02.102
Description
µLAB.16.ai-19" / current

19" slide-in module for the acquisition of 16 analogue signals 0(4)... 20mA with CANopen, signal acquisition via circular plug-in connector, 24V DC supply via Combicon 5-pole connector, CAN connection via 2 x M12 Binder socket/plug, 19" Slide-in (1.094.171.3.000001) incl. front plate without handles, fuse T2.5A for M12 socket/plug, factory calibration

Downloads

MicroControl Flyer I/O Modules
PDF [1 MB]
