Control Units

Freely programmable
Control Unit

µMIC.200

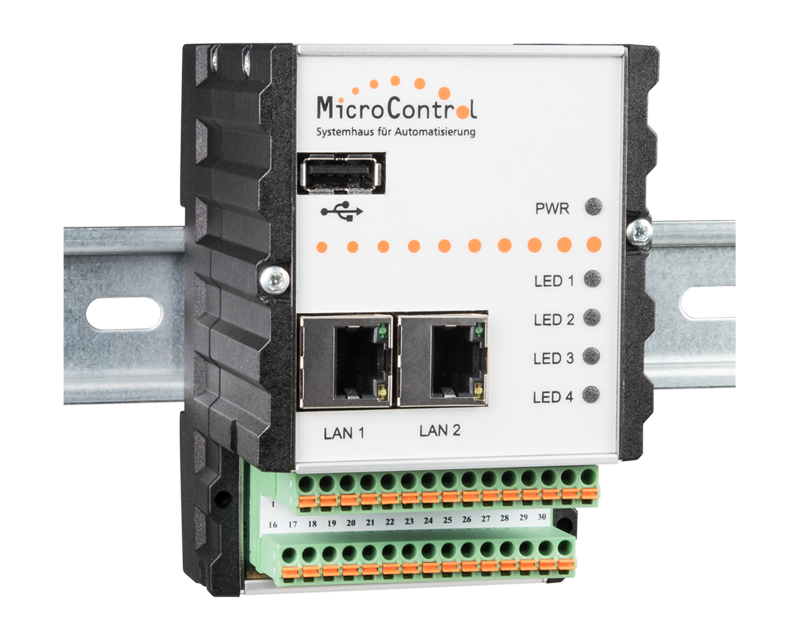

picture of µMIC.200 control unit
Home 9 Portfolio 9 Control systems 9 µMIC.200

Real-time Linux, Ethernet, CAN, USB plus custom electronics in a space-saving metal top-hat rail casing. In its µMIC.200 family, MicroControl integrates the best of the world of automation for IoT/Industry 4.0. The unit is equipped with COMBICON® connectors and offers versatile connection facilities for digital signals, CAN bus and RS-232. I/O modules with CAN interface can be connected to the unit via the integrated CANopen FD Master library.

An even higher flexibility is offered through its customizable electronics. Two boards perfectly matched. CPU board and high performance standard board or – alternatively – a CPU board and a custom board tailored to your specific needs. The metal casing is able to withstand extreme operating environments. And all this at most favourable terms.

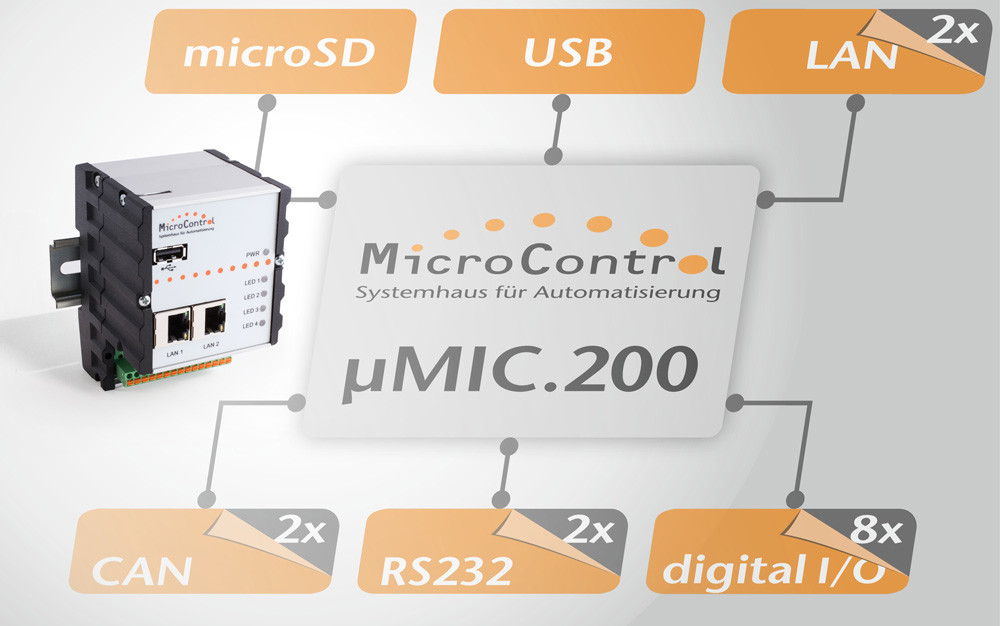

µMIC.200 with image of interfaces

µMIC.200: Interface options

Features

  • 2 Ethernet interfaces
  • 2 CAN interfaces (isolated)
  • 2 x RS-232 (isolated)
  • CANopen Master function
  • Cortex-A8 CPU with USB interface of 1 GHz frequency
  • 4 GByte Flash and 512 MByte DDR3 RAM
  • FRAM memory (battery-free)
  • Memory extension via microSD card
  • Operating temperature range -40 °C … + 85 °C
  • Power supply voltage 9…36 V DC
  • DIN rail mouting TS35
  • Metal casing

Ordering Information

Item no.
Description
200.00.005
µMIC.200

Freely programmable control unit in metal casing for DIN-rail applications. This ARM based platform can be programmed with Node-RED or in C/C++.

99.99.013
µMIC.200 Starter kit

Contains: µMIC.200 control unit, mains adapter, CANopen I/O module, connecting cable

Downloads

Datasheet, Rev. K
Control unit µMIC.200
PDF [270 KB]

Flyer Control Systems
PDF [736 KB]

Virtual machine 2.04.00
Ubuntu with C/C++ cross compiler
[5.2 GB]

Handout Control Units µMIC.200
PDF [1 .8 MB]
