8 x Temperature IN

8-channel analogue input
Temperature

µCAN.8.ti-SNAP

MicroControl I/O module SNAP rail 8-channel analogue input CANopen temperature
Home 9 Portfolio 9 I/O Modules 9 SNAP 9 µCAN.8.ti-SNAP

The transducer unit µCAN.8.ti-SNAP is equipped with 8 inputs for thermocouples or Pt100 sensors. The integrated CAN interface supports CANopen and J1939 protocols. Bit rate and node-ID may be set via DIP switches inside the device or via LSS.

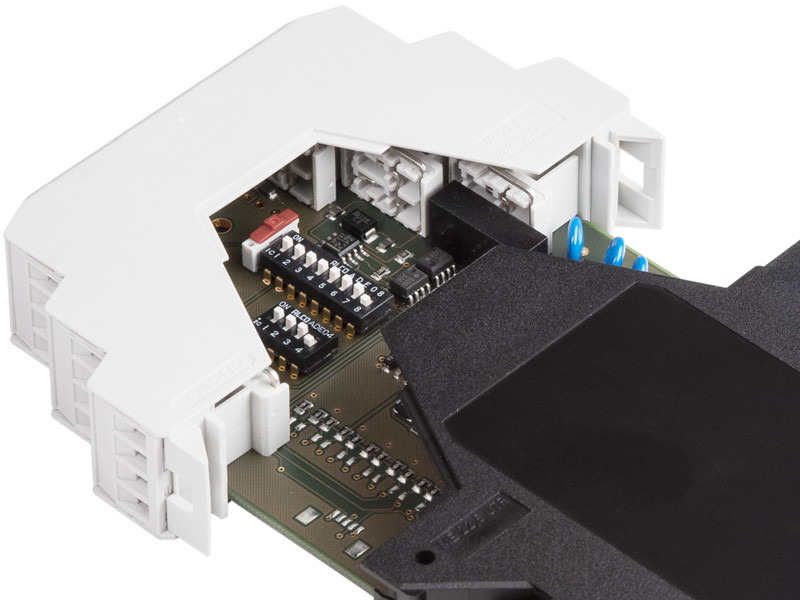

MicroControl I/O module SNAP rail 8-channel analogue input CANopen temperature (open casing)

Acquisition of 8 temperature signals: µCAN.8.ti-SNAP

Features

  • Temperature thermo type J, K, L, N, R, T
  • Temperature Pt100/Pt1000 (2-wire)
  • Accuracy +/- 0.5 K (Thermo)
  • Accuracy +/- 0.2 K (Pt100)
  • Resolution 16-bit (0.1 °C)
  • Sampling rate 20 ms / 50 Hz
  • Galvanically isolated fieldbus (option)
  • Sensor error detection
  • Screw connection via plug-in connectors
  • Protocol CAN / CANopen / Raw CAN

Further designs

Ordering information

Item no.
Description
10.85.010
µCAN.8.ti-SNAP / Thermo / no galv. isolation

8-channel temperature signal acquisition module for J, K, L, N, R and T type thermocouples. Bus interface CANopen not galv. isolated. Signal wiring via screw plugs.

10.85.009
µCAN.8.ti-SNAP / Thermo / galv. isolation

8-channel temperature signal acquisition module for J, K, L, N, R, T and E type thermocouples. Bus interface CANopen with galv. isolation. Signal wiring via screw plugs.

10.85.105
µµCAN.8.ti-SNAP / Pt100 / no galv. isolation

8-channel temperature signal acquisition module for resistance temperature detectors PT100. Bus interface CANopen not galv. isolated. Signal wiring via screw plugs.

10.85.106
µCAN.8.ti-SNAP / Pt100 / galv. isolation

8-channel temperature signal acquisition module for resistance temperature detectors PT100. Bus interface CANopen galv. isolated. Signal wiring via screw plugs.

10.85.200
µCAN.8.ti-SNAP / Pt1000 / no galv. isolation

8-channel temperature signal acquisition module for resistance temperature detectors PT1000. Bus interface CANopen not galv. isolated. Signal wiring via screw plugs.

10.85.201
µCAN.8.ti-SNAP / Pt1000 / galv. isolation

8-channel temperature signal acquisition module for resistance temperature detectors PT1000. Bus interface CANopen galv. isolated. Signal wiring via screw plugs.

Downloads

Datasheet µCAN.8.ti-SNAP
8-channel analogue input temperature
PDF [199 KB]

Manual µCAN.8.ti-SNAP
8-channel analogue input temperature
PDF [809 KB]

EDS-file
mcan8ti_snap_v1r02.eds
EDS [30 KB]
