8 x Digital IN/OUT

8-channel
Digital input or output

µCAN.8.dio-SNAP

MicroControl I/O module SNAP rail 8 digital inputs outputs
Home 9 Portfolio 9 I/O Modules 9 SNAP 9 µCAN.8.dio-SNAP

The µCAN.8.dio-SNAP is a freely configurable digital I/O module featuring 8 channels. Module ID and bit rate can be set via DIP switch or via CAN bus (LSS, CiA 305).

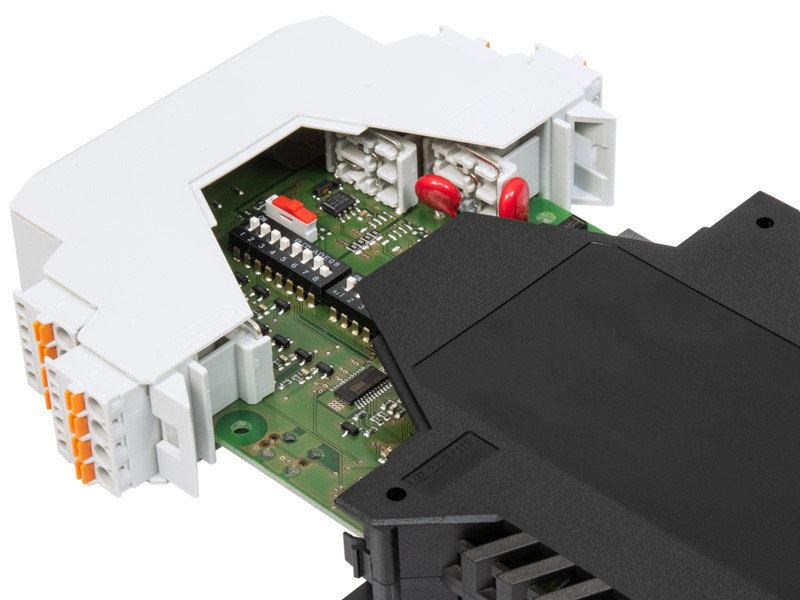

MicroControl I/O module SNAP rail 8 digital inputs outputs (open casing)

µCAN.8.dio-SNAP: Digital I/Os with CANopen

Features

  • Digital input or output
  • Galvanically isolated fieldbus (option)
  • Input or output freely configurable
  • Output drivers can be supplied separately
  • Each output to be charged with max. 1 A
  • Push-in connection at the plug-in connectors
  • Fieldbus CAN / CAN FD
  • Protocol CANopen / CANopen FD
  • Protocol J1939 / Raw CAN

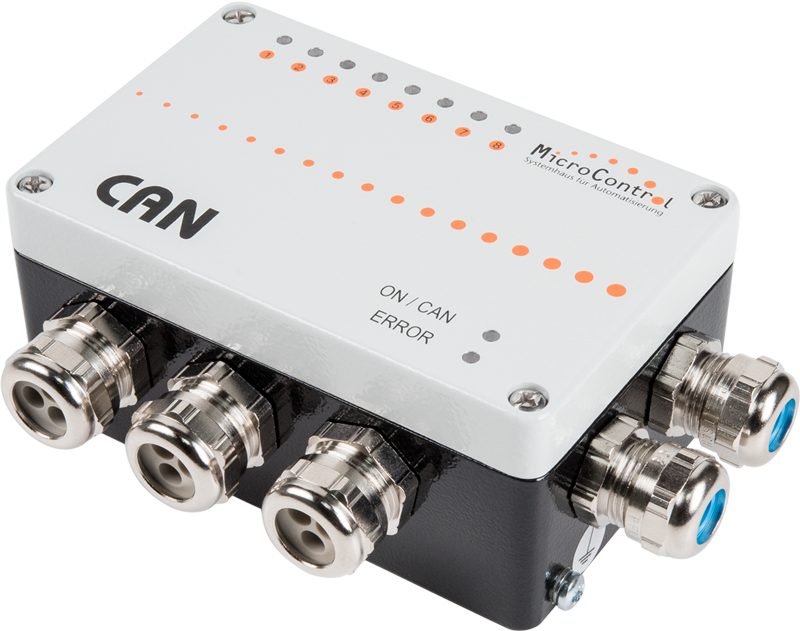

Further designs

Ordering information

Item no.
10.86.059
10.86.060
Description
µCAN.8.dio-SNAP / no galv. Isolation

8-channel digital input /output module with CANopen / CANopen FD / J1939, no galv. isolation of the CAN bus, for tophat DIN-rail mounting. Signal wiring via push-in connectors.

µCAN.8.dio-SNAP / galv. isolation

8-channel digital input /output module with CANopen / CANopen FD / J1939, galv. isolation of the CAN bus, for tophat DIN-rail mounting. Signal wiring via push-in connectors

Downloads

Datasheet µCAN.8.dio-SNAP
8-channel digital I/O digital inputs or outputs
PDF [186 KB]

Manual µCAN.8.dio-SNAP
8-channel digital I/O digital inputs or outputs
PDF [1 .3 MB]

EDS-file
mcan8dio_snap_v2r08.eds
EDS [20 KB]
