CANopen 19″-slide-in module
for temperature measurement
µLAB.16.ti-19″ / Thermocouple
Equipped with CAN or CANopen interfaces and a 19″ slide-in casing, the MicroControl µLAB is particulary suitable for measuring electric, thermal and mechanic signals in engine or components testing facilities. The signal wires are connected to the module by plug-in connectors in the front plate.

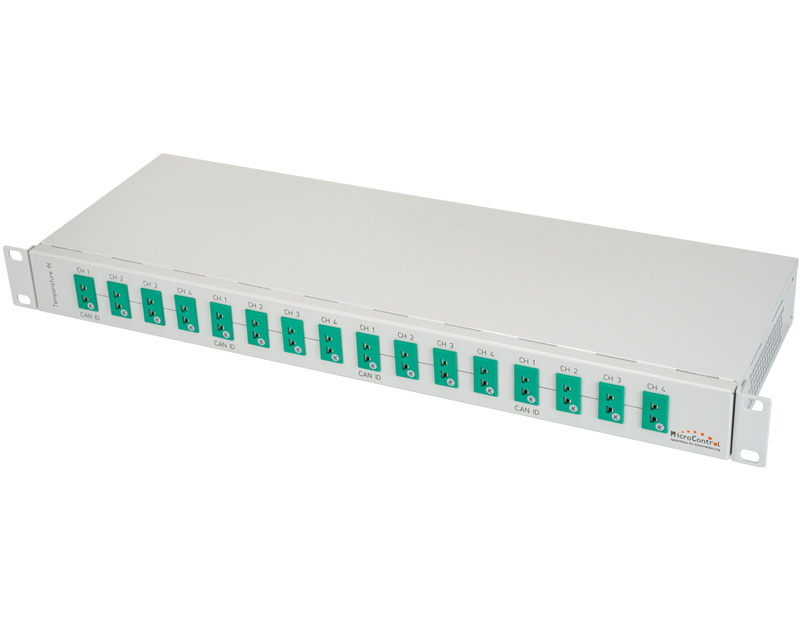

µLAB.16.ti-19″: Data acquisition in a 19″ slide-in module
Features
- Temperature thermo type K
- Accuracy +/- 0.5 K
- Resolution 16-bit (0.1 °C)
- Sampling rate 10 ms / 100 Hz
- Galvanically isolated fieldbus
- Sensor error detection
- Equipped with cold-junction compensation
- Operating temperatures -40…+85 °C
- Power supply voltage 9…36 V DC
- Connection via thermo plug-in
- Fieldbus CAN
- Protocol CANopen / Raw CAN
Further designs
µCAN.1.ti-BOX
1-channel analogue input temperature
µCAN.4.ti-BOX
4-channel analogue input temperature
µCAN.1.ti-TRS
1-channel analogue input temperature
µCAN.1.ti-SNAP
1-channel analogue input temperature
µCAN.8.ti-SNAP
8-channel analogue input temperature
µCAN.4.ti-F1 / Pt100
4-channel analogue input temperature
µCAN.1.ti-SENSOR
1-channel analogue input temperature
µCAN.1.ti-BOX
1-channel analogue input temperature
µCAN.4.ti-BOX
4-channel analogue input temperature
µCAN.1.ti-TRS
1-channel analogue input temperature
µCAN.1.ti-SNAP
1-channel analogue input temperature
µCAN.8.ti-SNAP
8-channel analogue input temperature
µCAN.4.ti-F1 / Pt100
4-channel analogue input temperature
µCAN.1.ti-SENSOR
1-channel analogue input temperature
Ordering information
19"-Slide-in for temperature acquisition with 16 sensors thermocouple type K ( green ) with CANopen, signal acquisition via thermocouple receptables, 24V DC supply via Combicon plugs 5 poles, CAN connection via 2 x M12 Binder connectors (male / female), 19"-rack (1.094.171.3.000001) incl. front plate without handles, fuse T2.5A for M12 connectors, factory calibration.
