Universal CAN monitor

µCAN.explorer

Screenshot PCAN-Explorer
Home 9 Portfolio 9 µCAN.explorer

The µCAN.explorer is a universal monitor used to supervise data streams within a CAN network. The single messages are assigned individual names (symbols) in order to ensure a clear and simple classification The integrated data logger facilitates the data stream being acquired and saved onto the bus.

Screenshot PCAN-Explorer 2

Features

  • Display of all received messages with indication of ID, length and data bytes
  • Display of all received remote-frames as well as indication of their number and reception interval
  • Storing and loading of compiled sender lists for emulating different CAN nodes
  • Errors of the CAN bus and the controller are indicated, including error-frame-counter
  • Supports various file formats, incl. Float according to IEEE754 and enumerations (Enums),
  • byte order adjustable to Intel and Motorola format

Ordering information

Item no.
Description
20.02.003
µCAN.explorer

Universal monitor for the supervision of the data traffic within a CAN network

20.03.008
µCAN.explorer Plotter Add-In

Optional functional add-ins for µCAN.explorer

20.03.006
µCAN.explorer Instruments Panel 3 Add-In

Optional functional add-ins for µCAN.explorer

20.03.007
µCAN.explorer SAE J1939 Add-In

Optional functional add-ins for µCAN.explorer

20.03.009
µCAN.explorer CANdb Import Add-in 3

Optional functional add-ins for µCAN.explorer

14.06.002

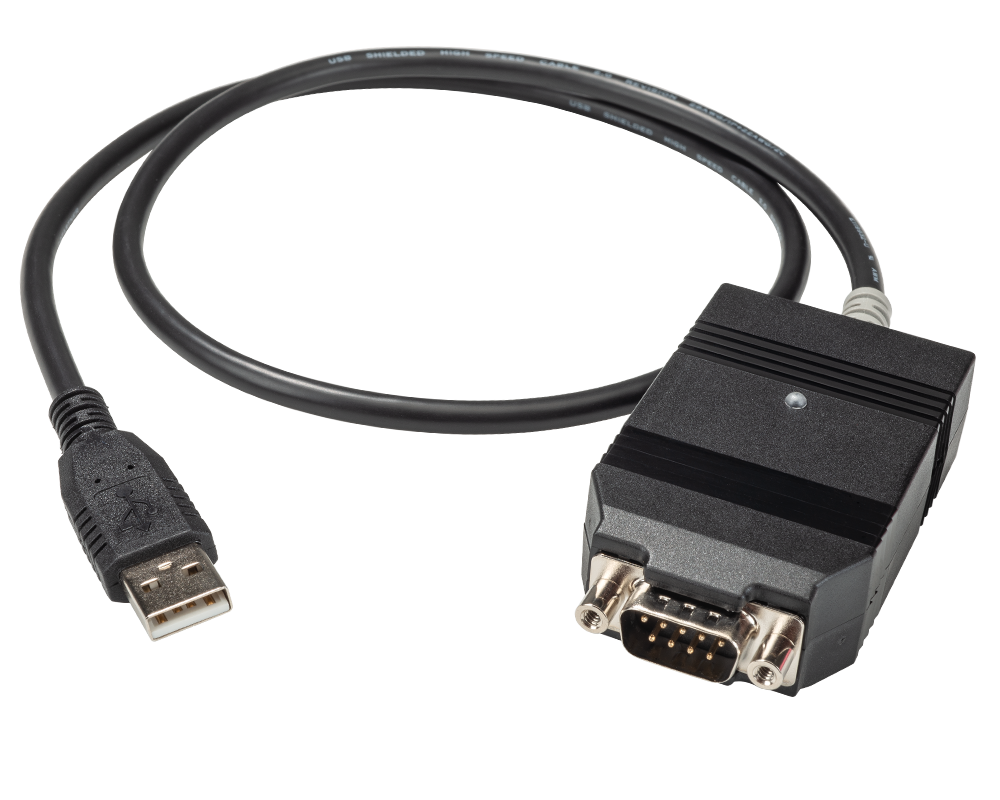

µCAN.pc.USB

CAN interface for the USB-Port

Downloads

Datasheet, Rev. D
µCAN.explorer
PDF [168 KB]
