CANopen / CANopen FD / J1939 Transmitter for Temperature Measurement

µCAN.1.ti-TRS

MicroControl I/O module transmitter TRS 1-channel temperature input CANopen
Home 9 Portfolio 9 I/O Modules 9 TRS 9 µCAN.1.ti-TRS

The cable transmitter µCAN.1.ti-TRS is designed for the acquisition of one temperature signal and its digitization for being processed via CAN bus. The TRS module is integrated directly in the measurement line at a short distance from the source to avoid interference effectively.

MicroControl I/O module transmitter TRS 1-channel temperature input CANopen - Pt100
µCAN.1.ti-TRS / Pt100

Features

  • Temperature Thermo type J, K, L
  • Temperature Pt100, Pt1000 (2-wire)
  • Accuracy ± 0.5 K (Thermo)
  • Accuracy ± 0.2 K (Pt100)
  • Resolution 16-bit (0.1 °C)
  • Sampling rate up to 1 kHz
  • Sensor error detection
  • Equipped with cold-junction compensation
  • Fieldbus CAN classic / CAN FD
  • Protocol CANopen / CANopen FD / J1939
MicroControl I/O module transmitter TRS 1-channel temperature input CANopen - thermocouple
µCAN.1.ti-TRS / Thermo

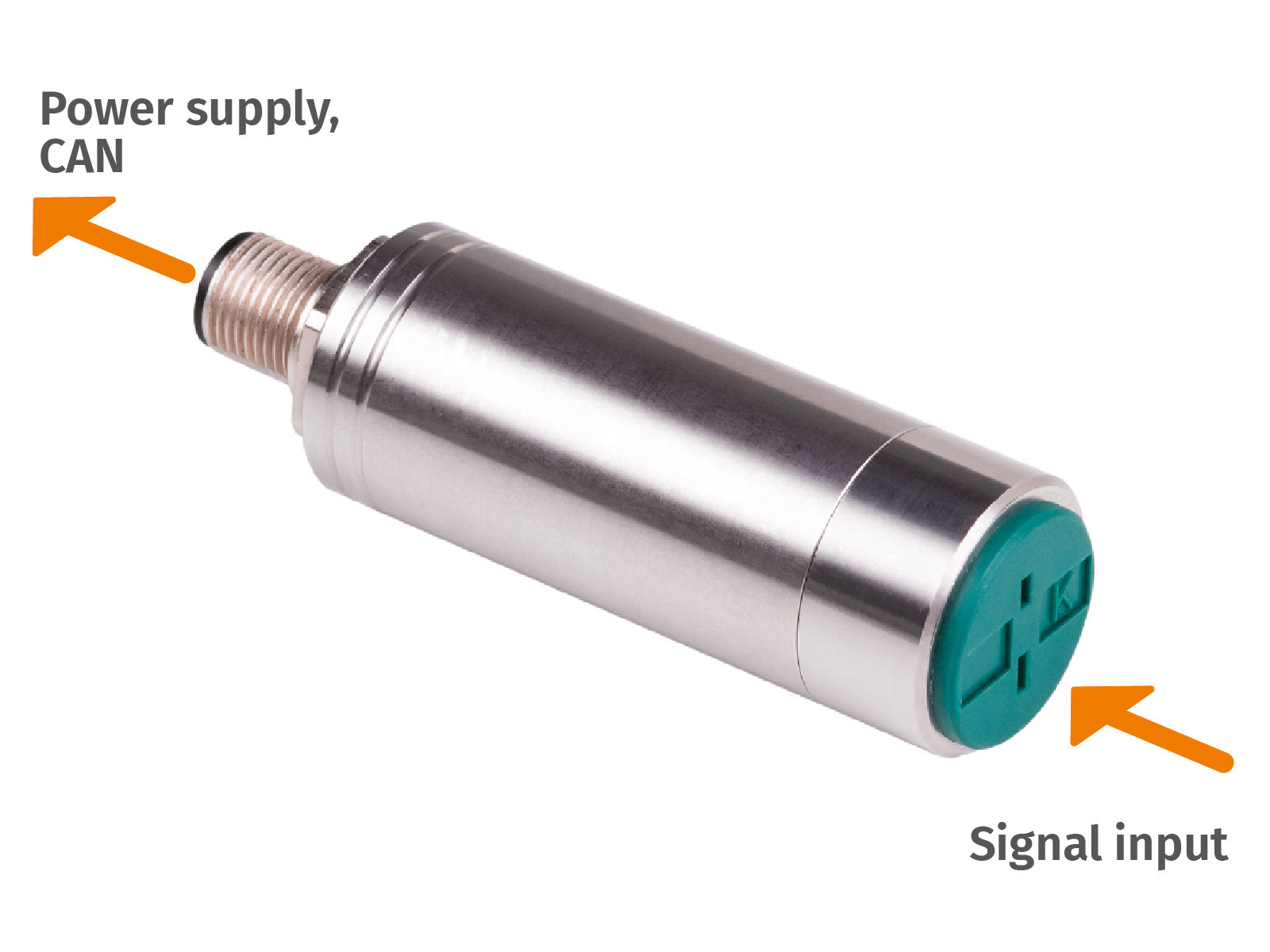

MicroControl I/O module transmitter TRS 1-channel temperature input CANopen - illustration of signal input and CAN supply

Temperature acquisition in the measuring line

2-channel transmitter module

The 2-channel TRS is available in different variants. Please contact us for more information and individual solutions.

Further designs

Ordering information

Item no.
Description
16.20.050
µCAN.1.ti-TRS / Thermo type J

1-channel temperature signal acquisition module. Signal type Thermo J, cnnection by M12 circular connector and mini-style thermo connector J. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

16.20.051
µCAN.1.ti-TRS / Thermo type K

1-channel temperature signal acquisition module. Signal type Thermo K, connection by M12 circular connector and mini-style thermo connector K. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

16.20.052
µCAN.1.ti-TRS / Thermo type L

1-channel temperature signal acquisition module. Signal type Thermo L, connection via M12 circular connector and mini-style thermo connector L. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

16.20.053
µCAN.1.ti-TRS / Pt100

1-channel temperature signal acquisition module. Signal type Pt100, connection by M12 circular connectors. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

16.20.054
µCAN.1.ti-TRS / Pt1000

1-channel temperature signal acquisition module. Signal type Pt1000, connection by M12 circular connector. Fieldbus: CAN / CAN FD. Protocols: CANopen / CANopen FD / J1939

90.02.400
Y junction M12
90.02.401
CANbus Termination M12

Downloads

Datasheet µCAN.1.ti-TRS
1-channel analogue input temperature
PDF [702 KB]

Manual µCAN.1.ti-TRS
1-channel analogue input temperature
PDF [719 KB]

Quickstart Manual TRS
1-channel analogue input temperature
PDF [160 KB]

EDS-file
mcan1ti trs.eds
EDS [20 KB]

Application Note AN1204
Setting of module ID and bit rate via LSS
PDF [204 KB]

Handout Sensor Connection
PDF [88 KB]
